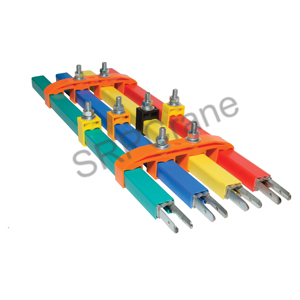

Pin Joint Busbar
(M Type 100-315 Amps) 4 Mtr. Long

  • Max. working temp. 80° C

  • Safe movement

  • Quick & Easy Installation

  • Touch proof, no exposed live part

  • Suitable for indoor and outdoor installation

Conductor Busbar System Galvanized Copper
Current (A) 80-125 amp 200-315 amp
4 Pole Hanger
1 Pole Hanger
Joint Cover
Copper Shoe with Holder
Mounting Angle
Single Collector Bracket
250 A Current Collectors
125 A Current Collector

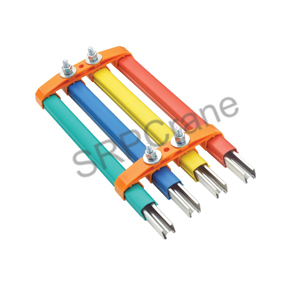

Bolt Joint Busbar
(W Type 60-400 Amps] 4.5 Mtr. Long

  • Max. working temp. 80° C

  • Safe movement

  • Quick & Easy Installation

  • Finger safe / Touch proof

  • Suitable for indoor and outdoor installation

  • Expansion join can be provided on request

Conductor Busbar System Galvanized Copper Aluminium
Current (A) 60-125 amp 160-125 amp 200-315 amp
4 Pole Hanger (W Type)
3 Pole Hanger
1 Pole Hanger
Joint Cover
End Power Feed
End Cap
Steel Jointer
Copper Jointer
Mounting Angle
Single Collector Bracket
250 A Current Collectors
125 A Current Collector
